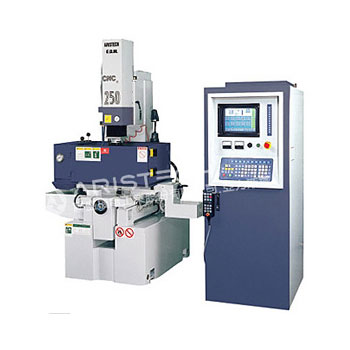

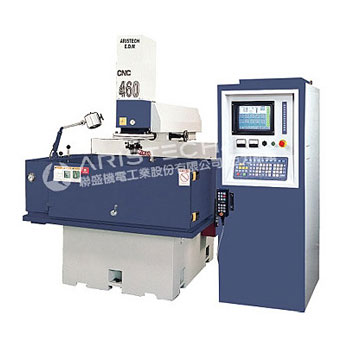

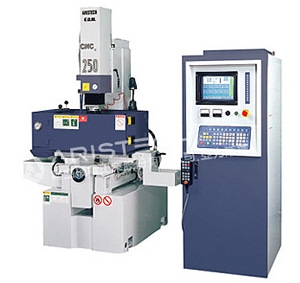

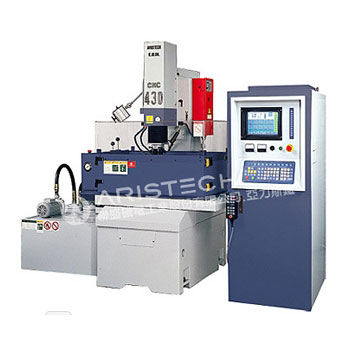

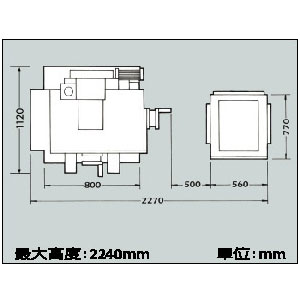

| SERIES NO.\SPECIFIC. | CNC-250 | CNC-430 | CNC-460 |
|
Work tank (WxDxH) inner size (WxDxH) mm/inch |
750x500x340 |
1,090x600x370 |
1,400x800x500 |
|
Work table size (XxY) mm/inch |
600x300 (23.6x11.8) |
650x350 (25.6x13.8) |
900x600 (35.4x23.6) |
|
Work table travel(XxY) mm/inch |
300x200 (11.8x7.9) |
400x300 (15.7x11.8) |
600x500 (23.6x17.7) |
|
Work head travel (W-axis) mm/inch |
200 |
270 |
- |
|
Ram servo travel (Z-axis) mm/inch |
180(7.2) |
200 (7.9) |
300 (11.8)STANDARD |
|
Minimum/Max. distant between The table surface and electrode plate. |
0~380(0~14.9) |
40~510(1.6~20) |
410~710(16.1~28)STANDARD |
|
Max. electrode weight kgs/lbs |
50 (110) |
120 (264) |
200 (440) |
|
Max. work piece weight kgs/lbs |
300 (66) |
400 (880) |
1,800 (3,960) |
|

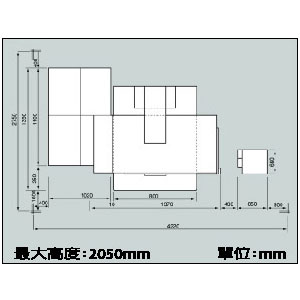

External dimension(WxDxH) mm/inch |
1,200x1,200x2,240 |
1,210x1,400x2,040 |
1,700x2,000x2,450 |
|
Packing dimension(WxDxH) mm/inch |
1,245x1,215x2,220 |
1,515x1,320,2,230 |
2,170x1,760x2,560 |
|
Net weight kgs/lbs |
1,050(2,310) |
1,800(3,960) |
2,800(6,160) |

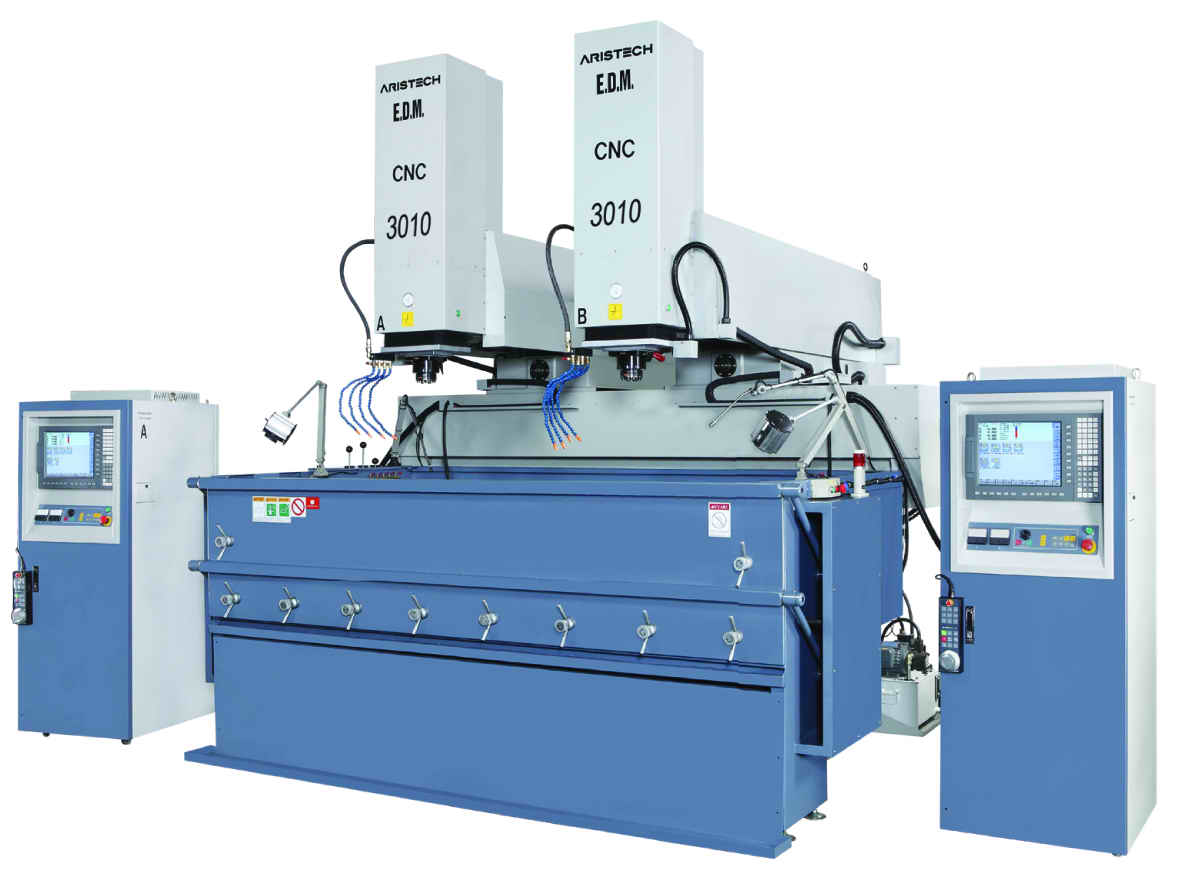

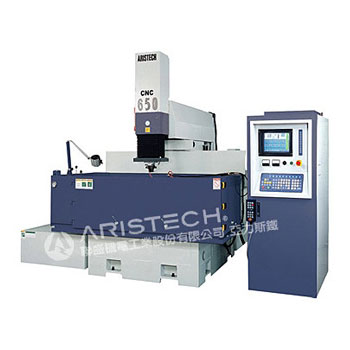

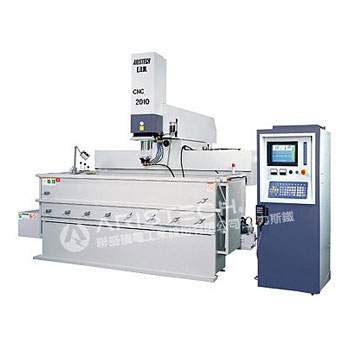

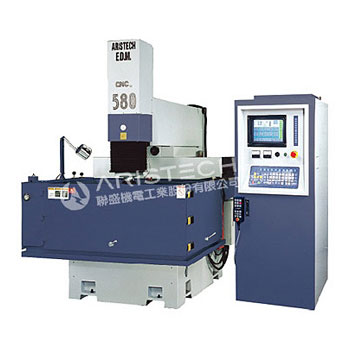

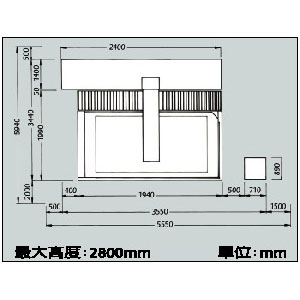

| SERIES NO. \ SPECIFIC. | CNC-580 | CNC-650 | CNC-2010 | CNC-3010 With Double Head |
CNC-4010 With Double Head |
|
Work tank(WxDxH) inner size (WxDxH) mm/inch |
1,700x1,050x700 |
2,150x1,150x700 |
2,900x1,500x700 |
4,000x1,600x800 |
5,000x1,600x800 |
|
Work table size(XxY) mm/inch |
1,000x700 (39.4x27.6) |
1,400x900 (55.1x35.4) |
2,240x1,050 (88.2x41.3) |
3,100x1,050 | 4,200x1,050 |
|
Work table travel(XxY) mm/inch |
1,000x600 (39.4x23.6) |
1,200x700 (47.3x27.6) |
2,000x1,000 (78.7x39.4) |
3,000x1,000 Each Head Maximum 2,000mm Minimum 1,000mm For One Head |
4,000x1,000 Each Head Maximum 2,500mm Minimum 1,000mm For One Head |
|
Work head travel (W-axis) mm/inch |
- |
- |
- |
- | - |
|
Ram servo travel (Z-axis) mm/inch |
450 (17.7) |
450 (17.7) |
550(21.7) |
550 | 550 |
|
Minimum/Max. distant between The table surface and electrode plate. |
380~830(14.9~32.7) |
500~950(19.7~37.4) |
600~1,150(23.6~45.3) |
600~1,150 | 700~1,250 |
|
Max. electrode weight kgs/lbs |
400 (880) |
400 (880) |
500 (1,100) |
500 | 500 |
|
Max. work piece weight kgs/lbs |
3,000 (6,600) |
4,000 (8,800) |
9,000 (19,800) |
12,000 | 20,000 |
|

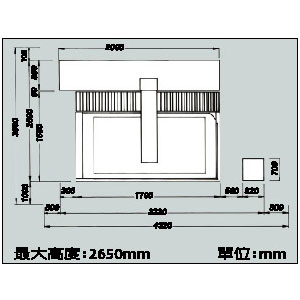

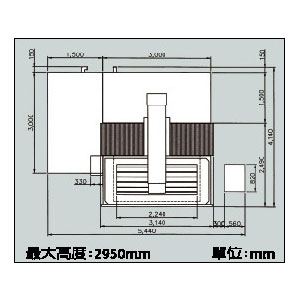

External dimension(WxDxH) mm/inch |
2,500x1,900x2,880 |
2,500x2,500x3,040 |
3,000x2,400x3,150 |
4,800x2,400x3,150 | 5,800x3,800x3,600 |
|
Packing dimension(WxDxH) mm/inch |
2,320x2,280x3,190 |
2,340x2,300x2,500 |
DEPEND ON REQUIRED |
Separated packing in container | Separated packing in container |
|
Net weight kgs/lbs |
5,400 (11,880) |
6,300 (13,200) |
13,000 (28,600) |
15,000 | 2,5000 |
| SERIES NO. \ SPECIFIC. | CNC-250 | CNC-430 | CNC-460 |
|
Capacity/LITERS |
300 |
350 |
850 |
|
Filter paper/pump PCS |
2/1PC. |
4/1PCS. |
5/2PCS. |
|
External dimension (WxDxH) |
BUILT IN |
1,350x1,400x2,050 |
2,000x850x500 |
|
Packing (WxDxH) Dimension |
BUILT IN |
1,210x1,110x1,025 |
2,150x955x1,020 |
|
Net weight kgs/lbs |
BUILT IN |
120(264) |
200(400) |
| Capacity \ LITERS | CNC-580 | CNC-650 | CNC-2010 | CNC-3010 With Double Head |
CNC-4010 With Double Head |
|
Capacity/LITERS |
1,000 |
2,000 |
4,200 |
5,400 | 7,400 |
|
Filter paper/pump PCS |
6/2PCS |
6/2PCS. |
6/2PCS. |
6/2PCS. | 6/2PCS. |
|
External dimension (WxDxH) mm/inch |
1,400x2,400x800 |
1,840x2,760x1,000 |
1,500x3,000x470 |
4,800x2,400x3150 | 5,800x3,800x3,600 |
|
Packing (WxDxH) Dimension mm/inch |
3,130x1,430x1,030 |
2,820x1,400x1,560 |
depend on required |
Upon required tanks | Upon required tanks |
|
Net weight kgs/lbs |
300(660) |
450(990) |
500(1,100) |
Upon required tanks | Upon required tanks |
| Control Axes | X, Y, Z | |||
|---|---|---|---|---|
| Moving Locus | Circle, Square, Sector, Inner, Outer, Sphere taper, Radiation,45 Holeeni Arge, Etc | |||
| Least Input Increment | mm / inch | 0.001 (0.00004) |
||
| Max. Input Increment | mm / inch | ±9999.999 (±393.7) |
||
| Coordinates System | Relative | |||
| Display System | 15" LCD-TFT | |||
| Nominal Current | A | 30 | 60 | 120 |
| Total Power Input | (K)VA | 3.5 | 6 | 10 |
| Max.Material Removal Rate | mm 3/min | 360 | 550 | 700 |
| Electrode Wear Rate | % | <0.3 | ||
| Best Surface Roughness | Min.Ra | 0.3μm | ||
| External Dimension(WxHxD) | mm | 800x730x1,800 (31.5x28.8x70.9) |
||
| Packing Dimension(WxHxD) | mm | 950x880x2,000 (37.5x34.7x78.7) |
||
| Net Weight | kgs | 200 (440) |
||
*Specifications are subject to change without notice.
| NO | DESCRIPTION | SPECIFICATION |
|---|---|---|
| 1 | Display | 15" LCD-TFT |
| 2 | Control Method | CNC Close Loop |
| 3 | Control Axes | X,Y,Z (Optional C-AXIS) |
| 4 | Minimum Setting Unit | 0.001mm/0.00004inch |
| 5 | Arithmetic limits | ±9999.995mm or ±9999.999mm |
| 6 | Positioning Command Format | Incremental. Absolute |
| 7 | Manual Feed Rate (By Remote Controller) | 4 SPEED |
| 8 | Inching(x1) | 0.001mm/0.00004inch Per Push |
| 9 | Positioning Parameters Sets | E-CODE |
| 10 | Machining Parameters Sections | S-CODE |
| 11 | Enlarged Machining Functions | Circle, Square, Sector, Inner, Outer sphere, Taper, Radiation.45" Holeeniarce Etc. |
| 12 | Orbital Movement Control | X,Y,Z(FREE). X,Y(FIXED) |
| 13 | Machining Position (Max) | 200 POSITION |
| 14 | Screen Pages | 20 PAGES |
| 15 | Program Date Capacity | 100 FILES AT LEAST |
| 16 | Linear Scales Resolution | 0.001mm / 0.00004inch |
| 1. | THE HIGHLY RIGID, FINE-GRAINED CAST IRON MACHINE BASE, COLUMN, TABLE, AND MEEHANITE CAST IRON COMPONENTS, PROVIDE FOR STABILITY & LONG SERVICE LIFE. |
|---|---|

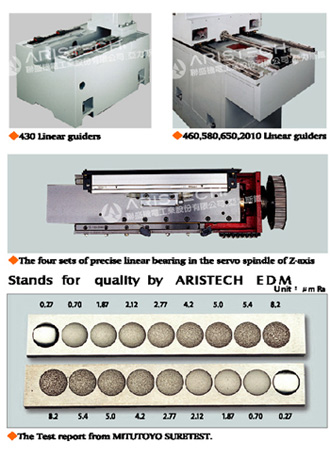

| 2. | THREE AXES EQUIPPED P-CLASS LINEAR GUIDES (MADE IN JAPAN, GERMANY OR SWITZERLAND) ON SLIDEWAYS. (CNC-430,580,650,2010) AND LINEAR SCALES FEED BACK DC SERVO SYSTEM FOR PRECISE ORBITAL POSITIONING. |
| 3. | X,Y,Z AXES ADOPT PRECISION CLASS BALLSCREWS AND DOUBLE UNTS ON WIDE SADDLE, SUPPORT THE TABLE MOVEMENT FOR EASY & ACCURACY POSITIONING. |
| 4. | THE PC BASED CONTROLLER ADAPTED DIALOG PROGRAM EDITOR AND COLOR 15" LCD-TFT. SIMPLE & CLEAR TOUCH PANEL. ALL DIGITAL EDM PARAMETER (S-CODE) FOR EASY TO UNDERSTAND & OPERATION. |
| 5. | AUTOMATIC POSITIONING, ORBITING MOTION & SIDE SPARKING FUNCTION. AND AUTOMATIC EDGE, CENTER POINT & DEEPEST POINT FINDING; REFERENCE POINT SEARCHING & MULTI-COORDINATE MEMORY FUNCTION. |
| 6. | NEW CNC CONTROLLER EQUIPPED VARIOUS MOTION MODE FOR SETTING(E-CODE) AS : CIRCLE, SQUARE, SECTOR, TAPER, INNER & OUTER SPHERE RADIATION, 45 DEGREE, AND THE 3-AXES LINAR, 2-AXES ARC, 3-AXES SPATIAL AND 4-AXES CONTOURING (OPTIONAL C-AXIS.) OFF-SET MOVEMENT. |
| 7. | AUTO EDITING FUNCTION : JUST INPUT THAT E-CODE (MOTION MODE) & P-CODE (PROGRAMING MODE) & EDM DEPTH, OTHER MACHINING CONDITIONS WILL BE AUTO PRESET FROM THE SAVE DATA BANK, THEN MACHINE AUTOMATICALLY OPERATE FROM ROUGH TO FINE FINISH CIRCLE. |
| 8. | NEW FUZZY LOGIC FOR ARCING CONTROL, AND FUZZY SERVO VOLTAGE CONTROL. WHEN THE DISCHARGING IS UNSTEADY, EDM PARAMENTERS WILL BE ADJUSTED BY THE CONTROLLER, THE ELECTRODE WILL BE JUMP BACK & UP AND PULSE-OFF WHEN ARCING. |
| 9. | NEW CIS COLOR, WITH NEW METAL SHIELD COVER ON MACHINE WHICH CORRESPOND WITH CE SAFETY STANDARD 89/392EEC & 93/68/EEC. |
| 10. | AUTOMATIC ELECTRODE CHANGER-ATC & C-AXIS OPTION AVAILABLE. |
|
1. |
INDUSTRIAL PC & 15" LCD-TFT & 3-AXES LINEAR SCALES. |
|
2. |
3 AXES DC, OR AC SERVO MOTORS & BALLSCREWS. |
|
3. |
1 PC ELECTRODE HOLDER. |
|
4. |
1 PC WORKING LAMP. |
|
5. |
1 SET TOOLS WITH TOOL BOX & CLAMPLING KITS. |
|
6. |
1 SET CARTRIDGE PAPER FILTERS. |
|
7. |
MACHINE LEVEL MOUNTS. |
|
8. |
AUTO FIRED DETECT SYSTEM & FIRE EXTINGUISHER. |
|
9. |
REMOTE CONTROLLER. |
|
10. |
OPERATION MANUAL & TECHNICAL DATA. |
|
1. |
SYSTEM 3R TOOL HOLDERS. |
|
2. |
ATC/AUTOMATIC ELECTRODE CHANGERS. EROWA OR SYSTEM 3R. |
|
3. |
EXTRA C-AXIS. |
|
4. |
CHILLER UNIT COOLING UNIT |
|
5. |
HYDRAULIC POWER FOR UP/DOWN WORKTANK FRONT DOOR. |
