CNC Wire Cut (Molybdenum Wires)
  • DW-35(ST) ,DW-35(AC)
CNC Wire Cut (Molybdenum Wires)
  • DW-45(ST) ,DW-45(AC)
CNC Wire Cut (Molybdenum Wires)
  • DW-68(AC)
CNC Wire Cut (Molybdenum Wires)
  • DW-810(AC)

CNC Molybdenum Wire Cut EDM (Fast Molybdenum wire Cutting)

PRODUCT APPLICATION :
Cut off 3D Printed Mertal Supports.

Economical Metal Jig Cutting, Tungsten Carbide, Sleeve, Jaw Split, Gear, Cam, Keyway, Complex Shape Parts, Small Quantity and Diversified Production

DW Sample：



DW Client:

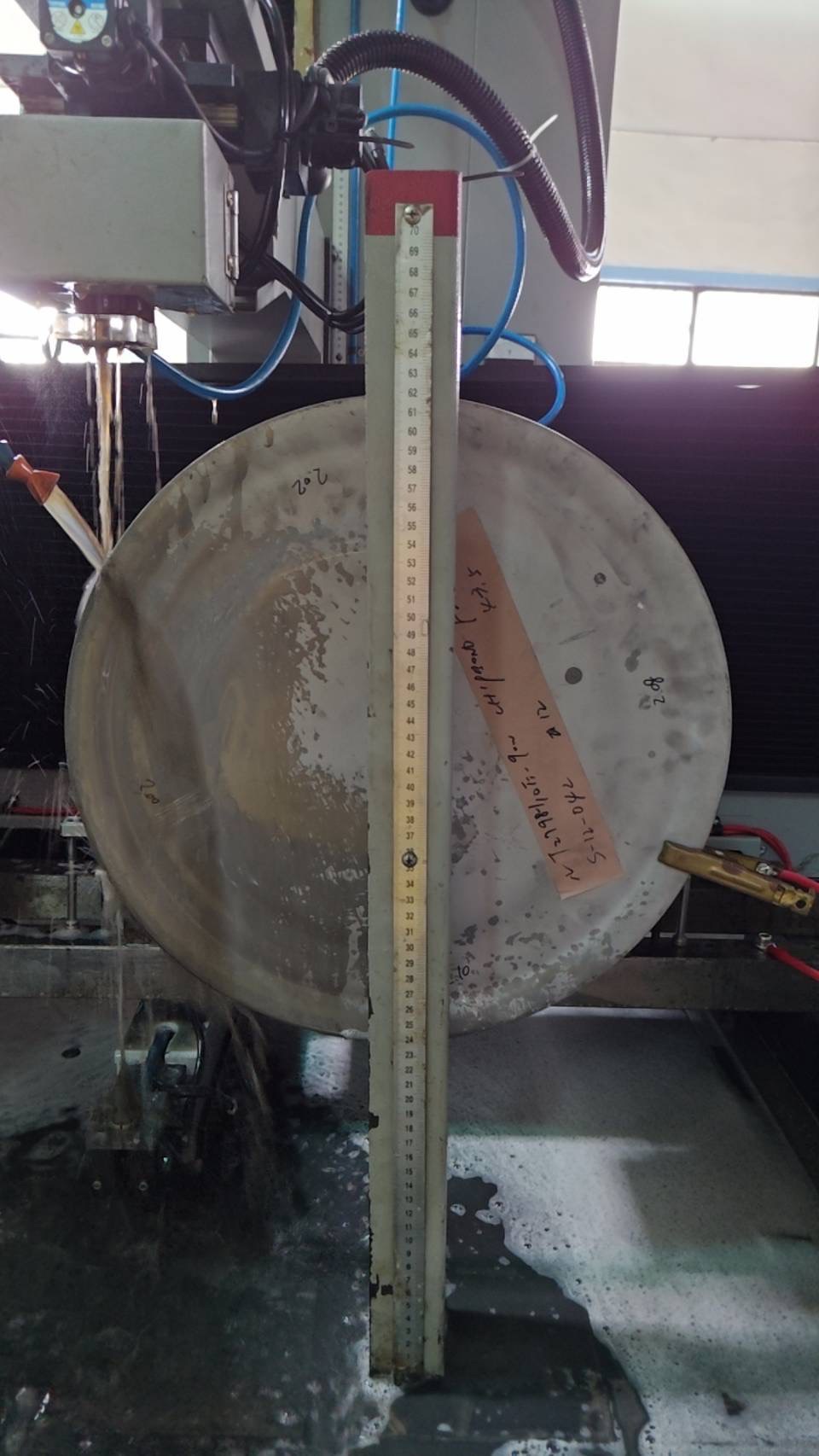

Workpiece thickness 500mm

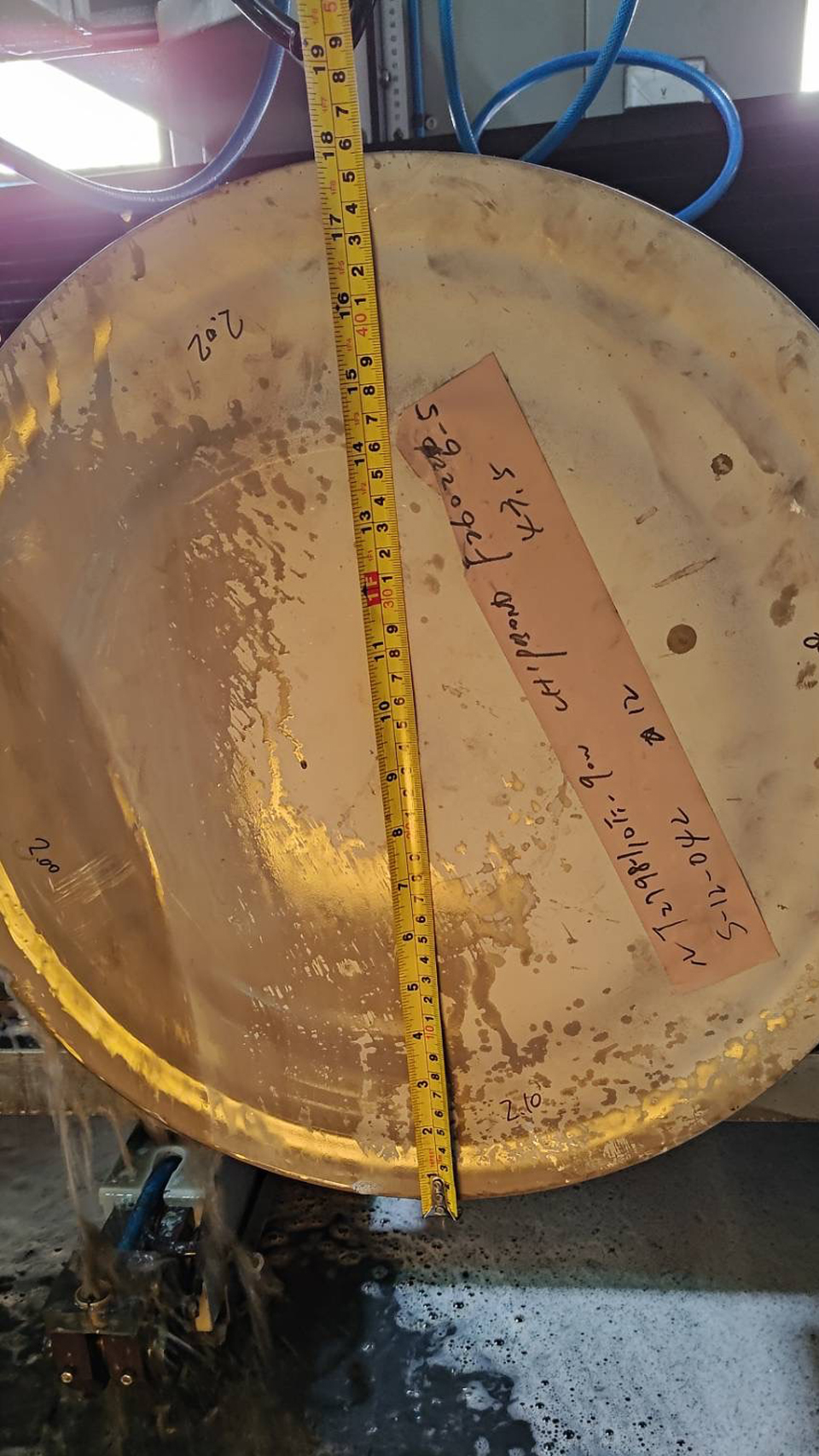

Workpiece thickness 500mm



Assembly photos at factory of Aristech:



Photos of domestic customers bought our wire cut EDM machines:



Photos of foreign customers bought our wire cut EDM machines:


A THE FIRST SET MOLYBDENUM WIRE CUTTING EDM MADE IN TAIWAN.IT IS SUITABLE SUPER-HARD ALLOY,SAMPLE. COMPLICATED SHAPE MOLD & PRECISION DIE. ESPECIAL FOR ECONOMIZE POWER & MATERIALS.
B X.Y AXES ADOPT REPCISION CLASS BALLSCREW & LINEAR GUIDES AND LINEAR SCALES(OPTIONAL) FEED BACK STEPPING MOTORS (OR AC SERVO MOTORS) SYSTEM FOR THE TABLE MOVEMENT & ACCURACYPOSITIONING.
C EQUIPPED AUTOMATIC WIRE TIGHTEN ROLLER DEVICE FOR GOOD PERFORMANCE WHEN WIRE CUTTING, AND MULTIPLE FLUSHING NOZZLERS FOR GOOD DIELECTRIC FLUID CIRCULATION.
D THE HIGHLY RIGID, FINE-GRAINED CAST IRON MACHINE BASE. COLUMN, TABLE AND MEEHANITE CAST IRON COMPONENTS PROVIDE FOR STABILITY & LONG SERVICE LIFE.
E USING INDUSTIRIAL PC PROGRAMMING & EDIT. THE ON-LINE EDIT. NO CODE EDIT, 3B CODE EDIT, (CAM GRAPHIC TRANSFER) EASY TO UNDERSTAND & OPERATION.

SIMPLE & ACCURACY.STANDARD MAXIMUM HIGH OF WORK-PIECE. 400mm.OPTIONAL:600mm MAXIMUM.
EFFICIENT FAST WIRE CUTTING THE WIRE BOBBIN DRIVING STSTEM.
ACCURATE POSITIONING POSITIONING JIG AND WORK TABLE WITH UNEAR GUIDES ON SLIDEWAYS.
 MACHINE UNIT:
ITEM DW-35(ST)
DW-35(AC)		 DW-45(ST)
DW-45(AC)		 DW-68(AC) DW-810(AC)

Work-Tank size(W×D)

mm

960×580

1100×670

1410×950

1510×1150

Work table size(X×Y)

mm

690×430

800×550

1070×600

1270×800

X x Y axes travel

mm

450×350

550×450

800×600

1000×800

Z axis Max. work-piece thickness
(by AC Motor)

mm

400
(Optional heightening)

400
(Optional heightening)

700
(Optional heightening)

700
(​​​​Optional heightening))

U x V axes travel

mm

30×30

30×30

30×30

30×30

Maximum taper Angle

Degree/mm

±3°/50

±3°/50

±3°/50

±3°/50

Max. work-piece size(W×D×H)

mm

450×
350×400

550×
450×400

800×
600×700

1000×
800×700

Max. work-piece weight

kgs

350

400

1200

2000

Dia. of molybdenum wire

mm

Ø0.18~Ø0.20(Standard Ø0.18)

Ø0.18~Ø0.20(Standard Ø0.18)

Ø0.18~Ø0.20(Standard Ø0.18)

Ø0.18~Ø0.20(Standard Ø0.18)

External dimensions
(W×D×H)

mm

1260×1833×1982

1360×1840×2200

1900×2130×2200

2160×2700×2400

Packing dimensions(W×D×H)

mm

1850×1970×2200

1870×2080×2250

2200×2430×2500

2460×3000×2700

Net weight

kgs

1700

1850

4500

5300
※Specifications subject to change without notice.
DIELECTRIC FLUID UNIT:
Capacity of dielectric fluid L 120 180
Dielectric fluid tank size(W×D×H) mm 900×500×280 1200×600×300

POWER SUPPLY UNIT：

Cutting accuracy

mm

±0.015

Best finish roughness

μmRA

1.0

Max. power consumption

KVA

3

External dimensions(W×D×H)

mm

950×610×1700

Packing dimensions(W×D×H)

mm

1020×970×2090

Net weight

kgs

200

STANDARD ACCESSORIES：

1.

Magnetic work lamp

1 pc

2.

Clampers & kits

1 set

3.

Positioning jig.

1 set
4. Tools & toolbox 1 set

5.

Electrode molybdenum wires(ψ0.18mm)

1 roll

6.

Dielectric filtering Tank

1 set

7.

Operation manual

1 set
8. 2 axes digital readout & linear scales (for model DW-35 & DW-45 stepping motors type) 1 set
9. U.V Axes ±3° taper device 1 set

CNC FUNCTION﹕

1. Automatic positioning
2. Program editing
(a) On-line edit (simple CAD)
(b) N.C. code edit (G.M code)
(c) 3B code edit
(d) DXF edit (CAM, graphic transfer file)
3. Forward or reverse orbital function
4. Automatic or block stop machining
5. Mirror image function
6. Coordinate rotation function
7. Dry run function
8. Battery backup for memory
9. (MDI) manual data input
10. Start point or hold point return
11. Short-circuit interrupt protection & Auto. Stop
12. Edming gap compensation
13. Wire diameter compensation
14. Cutting path compensation
15. Cutting path display


CNC CONTROL UNIT:

Circuit system Power MOS transistor
Average output current 5A
Voltage select Automatic Switching.
Off time select Automatic Switching.
Data Input Keyboard,USB,LAN Port
Positioning Display 15" LCD TFT
Cutting Data Display 5" LCD
Graphic function 2D/3D display
Control system Open loop/Stepping system
Close loop/AC servo systemc
Control axis X,Y,U,V(4 axes)
Min. movement unit 0.001mm
Min. setting unit 0.001mm
Max. command value ±999.999mm
Command system Abs. / Inc
Total AC power input 3KVA
